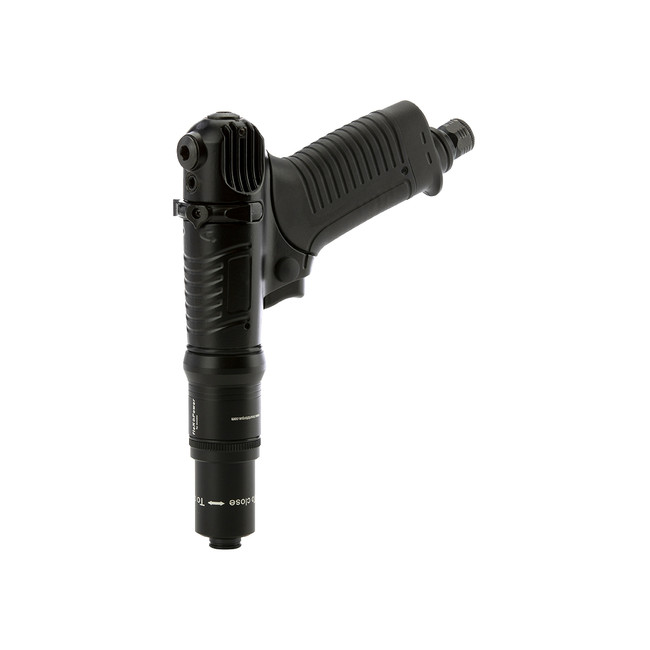

XP-Series Pistol Grip Pneumatic Screwdrivers

Quick Answer

The XP-Series Pistol Grip is a line of pneumatic screwdrivers designed for medium- to high-volume production fastening applications. Featuring a high-performance oil-free air motor, precision automatic shut-off clutch, ergonomic pistol grip, one-touch torque adjustment, and patented Multi-Air hose connection options, the XP-Series provides accurate torque control, reduced vibration, and dependable continuous-duty performance.

Who This Is For

Manufacturing engineers
Process engineers
Quality engineers
Assembly operators
Automotive manufacturers
Aerospace manufacturers
Electronics manufacturers
General industrial assembly facilities

When Should You Use This?

Use the XP-Series Pistol Grip when:

High-volume pneumatic fastening is required
Operator comfort is a priority
Continuous-duty production is performed
Repeatable torque control is important
Reduced operator fatigue is desired
A pistol grip configuration provides better ergonomics than an inline tool

When Should You NOT Use This?

The XP-Series Pistol Grip may not be the best choice when:

Programmable fastening is required
Torque-angle monitoring or traceability is needed
Cordless operation is preferred
An inline or right-angle screwdriver better fits the application
Automated robotic fastening is required

For programmable fastening or data collection, consider the Mountz ECT-Series, HD-Series, or YF-Series.

How the XP-Series Works

The XP-Series Pistol Grip uses compressed air to power a high-performance oil-free pneumatic motor and precision automatic shut-off clutch.

During operation, the screwdriver:

Uses compressed air to drive the oil-free motor.
Rotates the fastener until the preset torque is achieved.
Automatically shuts off at the selected torque.
Allows quick one-touch torque adjustment.
Offers three air inlet locations to simplify hose routing and workstation layout.

Result:

Accurate torque control
Repeatable fastening performance
Improved operator comfort
Reduced vibration and torque reaction
Reliable continuous-duty operation

Core Features

High-performance oil-free pneumatic motor
Precision automatic shut-off clutch
One-touch torque adjustment
Torque adjustment cover to prevent tampering
Ergonomic pistol grip with soft-texture handle
Reduced noise, vibration, and torque reaction
Lightweight aluminum alloy housing
Patented Multi-Air inlet selection
Three air inlet locations (handle, top, or back)
Four color-coded torque identification rings included
Continuous-duty production operation

Configuration Options

Configuration	Best For
XP35P	Precision low-torque fastening
XP41P	General production assembly
XP48P	Medium-torque fastening
XP55P	Higher-torque production fastening
XP65P	Heavy-duty pneumatic fastening

Available Models

The XP-Series Pistol Grip includes pneumatic screwdrivers with torque ranges from 2.6 to 156.2 lbf.in (0.3–17.6 N·m). Every model features a 1/4" female hex drive, ergonomic pistol grip, and Mountz's patented Multi-Air inlet system.

XP-Series Pistol Grip Model Chart

Model	Item Number	Torque Range	RPM	Drive Size	Weight
XP35P	360010	2.6–17.4 lbf.in (0.3–2.0 N·m)	2200	1/4" Female Hex	1.3 lbs
XP41P	360011	4.3–30.4 lbf.in (0.5–3.4 N·m)	1000	1/4" Female Hex	1.3 lbs
XP48P	360012	6.1–43.4 lbf.in (0.7–4.9 N·m)	1700	1/4" Female Hex	2.3 lbs
XP55P	360013	10.4–65.1 lbf.in (1.2–7.4 N·m)	1000	1/4" Female Hex	2.3 lbs
XP65P	360014	26–156.2 lbf.in (2.9–17.6 N·m)	300	1/4" Female Hex	2.3 lbs

Specifications are based on the XP-Series Pistol Grip Product Brochure.

Model Selection Guide

If you need:	Recommended Model
Precision low-torque fastening	XP35P
General assembly	XP41P
Medium-torque production	XP48P
Higher torque fastening	XP55P
Maximum torque capacity	XP65P
Maximum fastening speed	XP35P
Heavy-duty industrial fastening	XP65P

Compatible Accessories

Accessory	Purpose
Torque Adjustment Cover	Prevents accidental torque changes
Color Code Rings	Visual identification of torque settings
1/4" Hex Power Bits	Fastening applications
Air Hose & FRL Unit	Provides clean, regulated compressed air

Setup & Adjustment

Connect the screwdriver to a clean, regulated compressed air supply.
Select the preferred air inlet location (handle, top, or back) based on workstation layout.
Install the appropriate 1/4" hex driver bit.
Adjust the torque using the one-touch torque adjustment mechanism.
Install the torque adjustment cover if required.
Verify torque output using a calibrated torque analyzer before production.
Perform sample fastening cycles and make final adjustments before beginning production.

Common Applications

The XP-Series Pistol Grip is commonly used in:

Electronics assembly
Automotive manufacturing
Aerospace assembly
Industrial equipment manufacturing
Appliance manufacturing
Telecommunications equipment assembly
General industrial production
High-volume pneumatic fastening applications requiring ergonomic pistol grip operation

Use Cases (Real-World Examples)

High-Volume Assembly

Problem: Operators perform repetitive fastening throughout the day, resulting in fatigue and inconsistent productivity.

Solution: The ergonomic pistol grip design, soft-texture handle, and reduced torque reaction improve operator comfort during continuous production.

Flexible Production Workstations

Problem: Air hose routing interferes with workstation layout or restricts tool movement.

Solution: The patented Multi-Air inlet system allows the hose to be connected at the handle, top, or back of the tool, providing greater flexibility when designing production workstations.

High-Speed Production

Problem: Manufacturers need to maximize throughput while maintaining fastening accuracy.

Solution: The XP-Series offers multiple speed and torque combinations, allowing users to match the tool to the application's production requirements.

Heavy-Duty Fastening

Problem: Larger fasteners require higher torque while maintaining repeatable shut-off performance.

Solution: The XP65P delivers torque up to 156.2 lbf.in (17.6 N·m) while maintaining the same precision automatic shut-off clutch used throughout the XP-Series.

Maintenance

Verify torque output regularly using a calibrated torque analyzer.
Inspect the drive spindle and bit holder for wear or damage.
Keep the screwdriver clean and free of dust and debris.
Use clean, dry, regulated compressed air to maximize tool life.
Inspect the air hose, fittings, and selected air inlet connection for leaks or damage.
Replace worn driver bits as needed to maintain fastening accuracy.
Periodically verify torque settings as part of your preventive maintenance program.

Integration & Advanced Features

High-performance oil-free pneumatic motor
Precision automatic shut-off clutch
One-touch torque adjustment
Torque adjustment cover to prevent tampering
Ergonomic pistol grip with soft-texture handle
Patented Multi-Air inlet system
Three air inlet connection locations (handle, top, and back)
Lightweight aluminum alloy housing
Reduced noise and vibration
Low torque reaction
Color-coded torque identification rings
Wide selection of torque ranges and RPM options
Designed for continuous-duty industrial production applications
