Open, Box & Flare Wrench Heads for TBIH & TBX-12

Quick Answer

Mountz offers interchangeable Open, Box, and Flare Wrench Heads for TBIH and TBX-12 break-over torque wrenches. Open End heads provide side access to fasteners, Box End heads surround the fastener for increased engagement, and Flare End heads provide access around tubing or lines while engaging more of the fastener than an open-end design. Mountz offers newer Open, Box, and Flare heads for TBIH and compatible TBX-12 models, along with existing Type A head options for TBX-12 wrenches.

What Are Interchangeable Wrench Heads?

Interchangeable wrench heads allow compatible TBIH and TBX-12 break-over torque wrenches to be configured with different head styles and sizes for different fastening applications.

When selecting a wrench head, consider:

Torque wrench compatibility
Fastener size
Required access
Wrench head style
Published maximum torque capacity

TBIH and TBX-12 are interchangeable-head torque wrench platforms. The TB break-over wrench is different because its head is permanently attached and cannot be interchanged after assembly.

Open End Wrench Heads

Open End Wrench Heads feature an open-sided design that allows the wrench to approach a fastener from the side.

They are useful in tight or confined spaces where access is limited to the side of the nut or bolt and surrounding components may prevent a fully enclosed head from fitting over the fastener.

Choose an Open End Head When:

Side access to the fastener is required.
Clearance around the fastener is limited.
A fully enclosed head cannot be positioned over the fastener.
An available American or metric size matches the application.

Available Open End Head Groups

Mountz offers:

New Open End Wrench Heads for TBIH and compatible TBX-12 wrenches
Type A Open End Wrench Heads for TBX-12 wrenches

View Open End Wrench Heads:

Box End Wrench Heads

Box End Wrench Heads feature an enclosed design that surrounds the fastener.

The enclosed design provides increased fastener engagement compared with an open-end head and is appropriate when there is enough access to position the head completely over the fastener.

Choose a Box End Head When:

The head can be positioned completely over the fastener.
Increased fastener engagement is preferred.
Access around the fastener allows the use of an enclosed head.
An available American or metric size matches the application.

Available Box End Head Groups

Mountz offers:

New Box End Wrench Heads for TBIH and compatible TBX-12 wrenches
Type A Box End Wrench Heads for TBX-12 wrenches

View Box End Wrench Heads:

Flare End Wrench Heads

Flare End Wrench Heads feature a partially enclosed design that provides access around tubing, lines, and similar obstructions.

The design engages more of the fastener than an Open End head while retaining the opening necessary to fit around a line or other obstruction.

Choose a Flare End Head When:

The fastener is located around tubing or a line.
A Box End head cannot be positioned over the application.
More fastener engagement than an Open End head is desired.
Access around an obstruction is required.

Available Flare End Head Groups

Mountz offers:

New Flare End Wrench Heads for TBIH and compatible TBX-12 wrenches
Type A Flare End Wrench Heads for TBX-12 wrenches

View Flare End Wrench Heads:

Open End vs. Box End vs. Flare End

Head Type	Design	When to Consider It
Open End	Open-sided	Side access or limited clearance
Box End	Enclosed	Increased fastener engagement when the head can fit over the fastener
Flare End	Partially enclosed	Fasteners around tubing, lines, or similar obstructions

The appropriate head depends on the fastener, available access, compatible wrench, and application requirements.

New Open, Box & Flare Wrench Heads

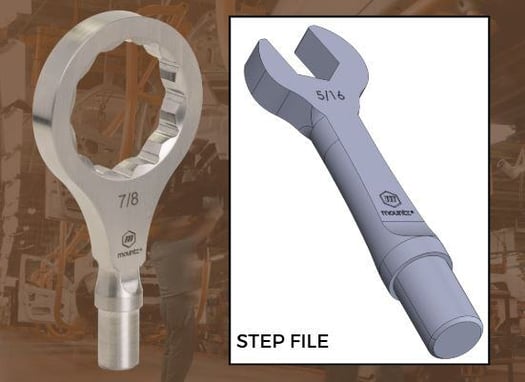

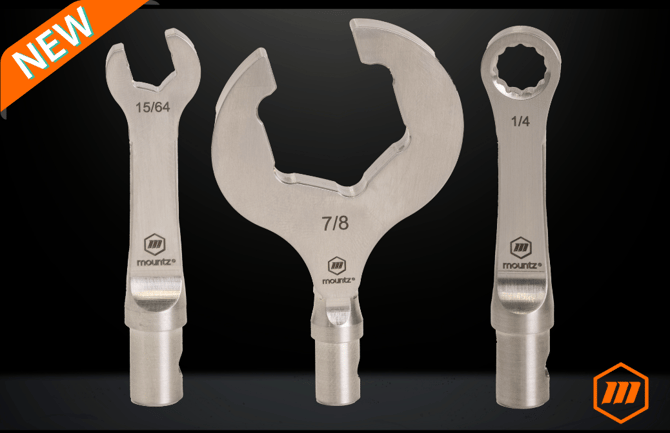

Mountz's newer Open, Box, and Flare Wrench Heads are interchangeable heads available for TBIH and compatible TBX-12 break-over torque wrenches.

The new heads are manufactured from 17-4 PH stainless steel. Mountz also identifies off-corner loading as a feature designed to reduce wear and extend wrench head life.

The 17-4 PH stainless steel specification applies specifically to these newer Open, Box, and Flare heads and should not be assumed to apply to previous versions or other Mountz wrench head types.

TBX-12 Type A Wrench Heads

Mountz also offers Type A interchangeable wrench heads specifically for TBX-12 break-over torque wrenches.

Available Type A configurations include Open End, Box End, and Flare End heads, along with other head styles available for the TBX-12 platform.

When selecting a replacement head for an existing TBX-12, verify which head design and cam configuration the wrench uses before ordering.

New Wrench Heads vs. Existing TBX-12 Heads

The newer Open, Box, and Flare Wrench Heads and the existing TBX-12 heads are not identical.

Mountz identifies two important differences:

Cam Compatibility

New Open, Box, and Flare heads are compatible with TBX-12 wrenches equipped with the new threaded cam.

The new threaded cam accommodates both the old and new heads.

However, new heads are not backward compatible with the old TBX-12 cam design.

If you have an older TBX-12, it can be sent to Mountz for a cam replacement to provide compatibility with the new heads.

Working Length

The new wrench heads have a different working length from the existing TBX-12 heads.

This difference should be considered when planning the fastening application.

If you are unsure which version your TBX-12 uses, contact Mountz before selecting a replacement wrench head.

Are These Wrench Heads Compatible With TB Wrenches?

No.

TB break-over torque wrenches use a fixed head. The head type and size are selected when the TB wrench is configured, and the head is permanently attached to the wrench.

The TBIH provides a similar compact break-over design but uses removable interchangeable wrench heads.

If the application requires the ability to change between different wrench heads, use an appropriate interchangeable-head wrench such as the TBIH or TBX rather than the fixed-head TB.

Maximum Torque Capacity

Each wrench head should only be used up to its published maximum torque specification.

Maximum torque capacity varies depending on the specific wrench head and size. Exceeding the published capacity may compromise accuracy and durability.

Always check the specifications for the individual wrench head when selecting a head for an application.

Can Wrench Heads Be Customized?

Yes. Mountz evaluates special wrench head requests on a case-by-case basis.

Contact Mountz to discuss feasibility and lead times for a custom wrench head.

Applications requiring torque beyond the published range of an available wrench head are also treated as special requests and evaluated for feasibility.

Calibration & Torque Accuracy

Calibration requirements depend on the torque wrench being used, application requirements, and frequency of use.

When changing the preset torque value for a different fastening application, verify and calibrate the wrench using appropriate torque measurement equipment.

If a break-over torque wrench is not maintaining its specified torque setting, it should be recalibrated or inspected for wear.

Follow the calibration and accuracy requirements for the specific TBIH or TBX-12 torque wrench being used.

Use in Critical Environments

Mountz states that the latest stainless steel wrench heads are designed to perform reliably in critical environments where precision and consistency are essential.

For highly controlled or sensitive applications, contact Mountz to discuss application requirements, product suitability, or potential customization.
