Quick Answer
Mini RDA Run-Down Adapters simulate fastening conditions for low-torque tool testing applications. When used with compatible Mountz torque analyzers and sensors, they help improve the consistency and repeatability of torque verification and calibration activities for precision fastening tools.
Who This Is For
- Quality engineers
- Manufacturing engineers
- Process engineers
- Calibration technicians
- Metrology laboratories
- Production teams
- Companies implementing torque verification programs
- Facilities performing in-house low-torque tool testing and calibration
When Should You Use This?
Use a Mini RDA Run-Down Adapter when:
- Testing low-torque electric screwdrivers
- Verifying precision fastening tools
- Performing calibration activities
- Simulating fastening conditions during testing
- Conducting quality control inspections
- Establishing repeatable torque testing procedures
When Should You NOT Use This?
A Mini RDA Run-Down Adapter may not be the best fit when:
- High-torque tool testing is being performed
- A standard run-down adapter is more appropriate for the application
- Torque verification is not required
- The adapter is not compatible with the torque range being tested
How Mini RDA Run-Down Adapters Work
A Mini RDA adapter is installed between the torque tool and a compatible torque sensor during testing.
The adapter provides a controlled rundown condition that simulates the resistance encountered in a fastening application before final torque is achieved. This helps create a more representative testing environment for low-torque tools than testing directly into a rigid sensor setup.
Result:
- More realistic low-torque testing
- Improved repeatability
- Better simulation of assembly conditions
- Consistent torque verification results
Core Features
- Designed for low-torque testing applications
- Simulates fastening conditions during tool testing
- Provides repeatable testing results
- Compatible with Mountz torque analyzers and sensors
- Supports torque verification programs
- Suitable for calibration and testing applications
- Compact design for precision fastening tools
Configuration Options
Low-Torque Testing Applications
Mini RDA adapters are designed specifically for low-torque tool testing and verification applications.
Sensor Compatibility
Mini RDA adapters are designed for use with compatible Mountz torque sensors and analyzers.
Application Flexibility
Mini RDA adapters can be used for:
- Electric screwdriver testing
- Torque verification
- Calibration activities
- Quality control inspections
- Production testing programs
Understanding Mini Run-Down Adapters
What Is a Mini RDA?
A Mini RDA is a compact run-down adapter designed to simulate fastening conditions during the testing of low-torque assembly tools.
The adapter allows the tool to run down before final torque is reached, helping create a more representative testing condition.
Why Use a Mini RDA?
Low-torque fastening tools often require testing conditions that more closely represent actual assembly applications.
A Mini RDA helps simulate the rundown portion of the fastening cycle, improving the consistency and repeatability of torque testing results.
What Makes the Mini RDA Different?
The Mini RDA combines the following features to support low-torque testing and calibration applications:
- Compact design
- Simulated rundown conditions
- Repeatable testing results
- Compatibility with Mountz torque analyzers
- Compatibility with Mountz torque sensors
Mini RDA vs. Standard Run-Down Adapters
Mini RDA
Mini RDA adapters are designed for low-torque fastening applications and precision assembly tools.
Common uses include:
- Electric screwdriver testing
- Precision fastening verification
- Calibration activities
- Production testing
Standard Run-Down Adapters
Standard run-down adapters are typically used for broader torque ranges and larger fastening tools.
Selecting the appropriate adapter depends on the tool type and torque range being tested.
Available Models
The Mini RDA Series is designed specifically for testing low-torque electric screwdrivers and precision fastening tools. Each Mini RDA model uses a different screw size to simulate the rundown characteristics of common threaded fasteners, helping create more representative torque testing conditions for low-torque applications.
How Mini RDA Models Are Specified
Each Mini RDA model is identified by the screw size used to simulate the fastening application.
The appropriate model should be selected based on the screw size most closely matching the fastener used in production.
All Mini RDA adapters:
- Simulate actual fastening joints for low-torque testing
- Operate in the clockwise direction only
- Mount inline between the torque tool and torque sensor
- Are designed for use with low-torque BMX and MTX sensors
- Include replaceable fasteners that should be changed as thread wear occurs (approximately every 25 run-downs)
Mini RDA Selection Guide
Testing #2 screws?
Choose:
Mini RDA2
Designed for applications using #2-56 × 1/4" Phillips stainless steel screws.
Testing #4 screws?
Choose:
Mini RDA4
Designed for applications using #4-40 × 1/4" Phillips stainless steel screws.
Testing #6 screws?
Choose:
Mini RDA6
Designed for applications using #6-32 × 1/4" Phillips stainless steel screws.
Testing #10 screws?
Choose:
Mini RDA10
Designed for applications using #10-32 × 1/4" Phillips stainless steel screws.
Need compatibility with low-torque Mountz sensors?
Choose any Mini RDA model.
Mini RDA adapters are designed for use with BMX20z through BMX10i and MTX low-torque sensors.

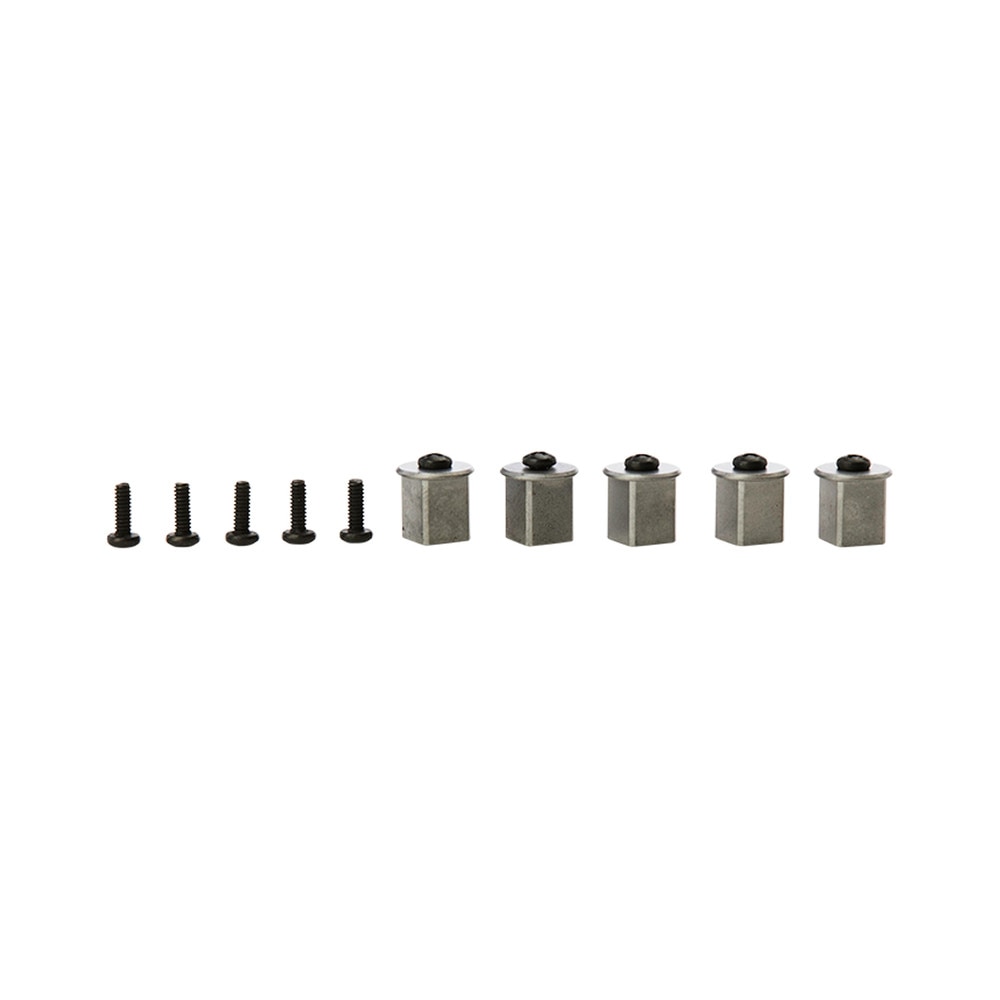

Mini RDA Models
| Model | Item Number | Screw Size | Application |
|---|---|---|---|
| Mini RDA2 | 061229-2 | PH Phillips #2-56 × 1/4" Stainless Steel | Very small precision fasteners |
| Mini RDA4 | 061229-4 | PH Phillips #4-40 × 1/4" Stainless Steel | Small electronics fasteners |
| Mini RDA6 | 061229-6 | PH Phillips #6-32 × 1/4" Stainless Steel | General precision assembly |
| Mini RDA10 | 061229-10 | PH Phillips #10-32 × 1/4" Stainless Steel | Larger low-torque fastening applications |
Which Mini RDA Model Should I Select?
Start with these questions:
- What screw size is used in the production application?
- Will the adapter be used with a compatible BMX or MTX low-torque sensor?
- Is the tool being tested a low-torque electric screwdriver?
- Does the testing require realistic joint simulation?
- Has the adapter fastener been inspected for thread wear?
The answers to these questions will help determine the appropriate Mini RDA model for the application.
Setup & Adjustment
To use a Mini RDA Run-Down Adapter:
- Connect the Mini RDA inline between a compatible low-torque sensor and the torque tool.
- Verify all mechanical connections before testing.
- Select the Mini RDA model that matches the production screw size.
- Operate the tool in the clockwise direction only.
- Inspect the adapter screw regularly and replace it when thread wear occurs (recommended approximately every 25 run-downs).
- Review torque results using the connected torque analyzer.
Following these steps helps provide consistent, repeatable torque testing while closely simulating low-torque fastening applications.
Applications
Mini RDA adapters are commonly used in:
- Electronics manufacturing
- Medical device manufacturing
- Precision assembly environments
- Calibration laboratories
- Quality control departments
Calibration & Quality Programs
Mini RDA adapters support:
- Torque verification
- Calibration activities
- Tool performance testing
- Quality control initiatives
- Measurement validation programs
Using a Mini RDA can help improve consistency and repeatability during testing activities.
Integration & Advanced Features
- Compatible with Mountz torque analyzers
- Compatible with Mountz torque sensors
- Supports low-torque rundown testing
- Suitable for calibration and verification activities
- Designed for precision fastening applications
- Compact design for low-torque testing
Media & Supporting Content
Related Articles / Content
- Mountz Torque Measurement Catalog
- Mountz Torque Analyzers & Sensors Bang Sheet
- Mountz Torque Analyzers & Sensors Service Card
- Webinar: How to Improve Quality with a Torque Verification Process
- Webinar: How to Improve Torque Control with In-Process Monitoring
