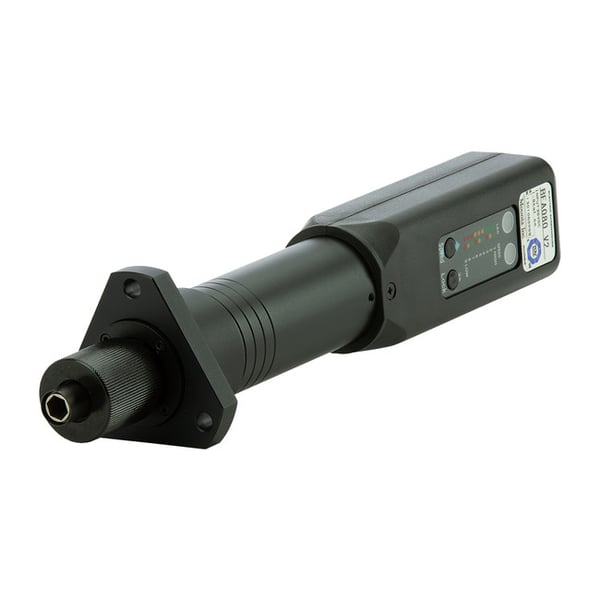

BFA-Series Robotic Electric Screwdrivers

Quick Answer

The BFA-Series is a line of robotic-style brushless electric screwdrivers designed for automated fastening applications. Featuring a precision automatic shut-off clutch, remote-start operation, front mounting flange, and brushless motor technology, the BFA-Series provides accurate torque control and reliable continuous-duty performance for robotic and fixtured assembly systems.

Who This Is For

Automation engineers
Manufacturing engineers
Robotics integrators
Process engineers
Quality engineers
Machine builders
Electronics manufacturers
Medical device manufacturers
Aerospace manufacturers
Industrial automation facilities

When Should You Use This?

Use the BFA-Series when:

Automated fastening is required
Robotic assembly systems are being integrated
Consistent, repeatable torque is critical
Continuous production is required
Remote-start operation is needed
ESD-safe tools are required
High production throughput is a priority

When Should You NOT Use This?

The BFA-Series may not be the best choice when:

Manual hand-held fastening is required
Torque and angle traceability are needed
Programmable fastening strategies are required
Portable or cordless operation is preferred
Vacuum screw pickup is required

For advanced programmable fastening or torque-and-angle monitoring, consider the Mountz ECT-Series or EPT-Series.

How the BFA-Series Works

The BFA-Series uses a high-performance brushless motor to drive a precision automatic shut-off clutch.

During operation, the screwdriver:

Receives a remote-start signal from the automation system.
Rotates the fastener until the preset torque is achieved.
Automatically shuts off at the programmed torque.
Sends start and stop output signals to the control system.
Can operate continuously in high-production environments with minimal heat buildup.

Result:

Accurate torque control
Repeatable fastening performance
Reliable robotic integration
Reduced maintenance
Increased production efficiency

Core Features

High-performance brushless motor
Precision automatic shut-off clutch
Remote-start operation
Front mounting flange for robotic and fixtured installations
External torque adjustment scale
Continuous-duty operation with minimal heat buildup
Over Heat Protection (OHP)
Over Current Protection (OCP)
LED status indicator
ESD-safe construction
Compatible with the Mountz Scout Screw Counter
Forward and reverse operation
Requires the STC40-FA transformer

Configuration Options

Configuration	Best For
BFA060	Ultra-low torque robotic fastening
BFA080	Low-torque automated assembly
BFA120	General precision robotic fastening

Available Models

The BFA-Series includes robotic brushless electric screwdrivers covering torque ranges from 0.9 to 10.4 lbf.in (9.8–117.6 cN·m). All models feature remote-start operation, ESD-safe construction, and a front mounting flange for robotic integration.

BFA-Series Model Chart

Model	Item Number	Driver Type	Torque Range	Adjustable RPM	Drive Size	Weight
BFA060 ESD	145841	Remote Start	0.9–5.2 lbf.in (9.8–58.8 cN·m)	700–1600	1/4" Female Hex	14.5 oz
BFA080 ESD	145842	Remote Start	0.9–6.9 lbf.in (9.8–78.4 cN·m)	450–1000	1/4" Female Hex	14.5 oz
BFA120 ESD	145843	Remote Start	1.7–10.4 lbf.in (19.6–117.6 cN·m)	300–700	1/4" Female Hex	14.5 oz

Model Selection Guide

If you need:	Recommended Model
Ultra-low torque robotic fastening	BFA060
Low-torque precision assembly	BFA080
General robotic assembly	BFA120
High-speed fastening	BFA060
Higher torque robotic fastening	BFA120

Compatible Accessories

Accessory	Purpose
STC40-FA Transformer	Required power supply
Scout Screw Counter	Screw counting and error-proofing
1/4" Hex Power Bits	Fastening applications
Robotic Mounting Hardware	Automated integration

Transformer

The BFA-Series requires the STC40-FA transformer for operation.

The STC40-FA provides:

30/40 VDC output
Over Heat Protection (OHP)
Over Current Protection (OCP)
LED tool status display
Compatibility with the Mountz Scout Screw Counter

The transformer supports all BFA-Series models and is designed for continuous production environments.

Setup & Adjustment

Mount the BFA-Series screwdriver using the integrated front mounting flange.
Connect the screwdriver to the STC40-FA transformer.
Connect the transformer to the automation controller or PLC.
Install the appropriate 1/4" hex driver bit.
Adjust the torque setting using the external torque adjustment scale.
Verify torque output with a calibrated torque analyzer before production.
Connect the Scout Screw Counter if screw counting or error-proofing is required.
Run sample fastening cycles and verify communication with the robotic system before beginning production.

High-volume production environments requiring remote-start fastening

Use Cases (Real-World Examples)

Robotic Assembly

Problem: Automated assembly systems require a screwdriver that delivers consistent torque while integrating easily with robotic equipment.

Solution: The BFA-Series features remote-start operation, a front mounting flange, and a precision automatic shut-off clutch, making it well suited for robotic and fixtured fastening applications.

Electronics Manufacturing

Problem: Sensitive electronic assemblies require repeatable torque while protecting components from electrostatic discharge.

Solution: All BFA-Series models are ESD-safe and provide accurate torque control for static-sensitive production environments.

High-Volume Automated Production

Problem: Automated production lines require fastening tools capable of continuous operation with minimal maintenance.

Solution: The brushless motor design minimizes heat buildup, reduces maintenance requirements, and provides reliable continuous-duty performance.

Error-Proofing Applications

Problem: Manufacturers need to verify that every required fastener has been installed before completing an assembly.

Solution: The BFA-Series can be connected to the Mountz Scout Screw Counter to support screw counting and improve assembly quality.

Maintenance

Verify torque output regularly using a calibrated torque analyzer.
Inspect the drive spindle and bit holder for wear or damage.
Keep the screwdriver clean and free of dust or debris.
Inspect cables and electrical connections before operation.
Verify the mounting flange remains securely fastened.
Replace worn driver bits as needed to maintain fastening accuracy.
Periodically verify torque settings as part of your preventive maintenance program.

Integration & Advanced Features

High-performance brushless motor
Precision automatic shut-off clutch
Remote-start operation
Front mounting flange for robotic integration
Start and stop output signals
Forward and reverse operation by switch
External torque adjustment
Continuous-duty operation with minimal heat buildup
Over Heat Protection (OHP)
Over Current Protection (OCP)
LED tool status indication
ESD-safe construction
Compatible with the Mountz Scout Screw Counter
Requires the STC40-FA transformer
